AT-2401-DP

AT-2401-DP

5GHz dual polarized high gain 24dBi directional antenna

Application	Long range backhaul /PtP/PtMP Non-Root
Polarization	Vertical & Horizontal
Antenna Gain	V24.5dBi / H23.5dBi
Frequency Range	4.9 - 5.875GHz
3dB Beamwidth H/V	7-9/7-9 degrees
Connector(s)	Two N-Type, two 1m RF cables included
Dimensions	370×370×40mm
Weight	1800g
Mounting	Wall/Pole Mount, mounting kit included
Operating Temp	-40°C to 65°C
IP Rating	IP-67

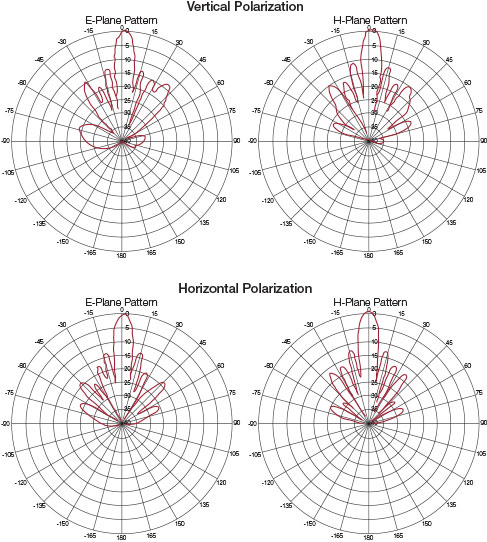

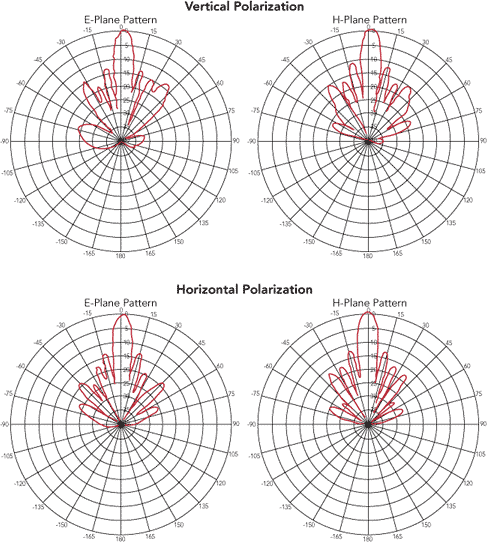

Antenna Patterns

AT-2101-DP

AT-2101-DP

5GHz dual polarized high gain 21dBi directional antenna

Application	Long range backhaul /PtP/PtMP Non-Root
Polarization	Vertical & Horizontal
Antenna Gain	21dBi
Frequency Range	4.9 - 5.875GHz
3dB Beamwidth H/V	10/10 degrees
Connector(s)	Two N-Type, two 1m RF cables included
Dimensions	305×305×15mm
Weight	900g
Mounting	Wall/Pole Mount, mounting kit included
Operating Temp	-55°C to 65°C
IP Rating	IP-67

Antenna Patterns

AT-1212-DP

AT-1212-DP

5GHz dual polarized 12dBi 120 degrees sector antenna

Application	PtMP Root/Mesh/Client Access
Polarization	Vertical & Horizontal
Antenna Gain	12.5dBi
Frequency Range	5.15 - 5.875GHz
3dB Beamwidth H/V	120/15 degrees
Connector(s)	Two N-Type, two 1m RF cables included
Dimensions	200×200×33mm
Weight	1000g
Mounting	Wall/Pole Mount, mounting kit included
Operating Temp	-55°C to 65°C
IP Rating	IP-67

Antenna Patterns

AT-0636-VP

AT-0636-VP

5GHz vertically polarized 5.5dBi omni-directional antenna

Application	Mesh/Client Access
Polarization	Vertical
Antenna Gain	5.5dBi
Frequency Range	5.15 - 5.875GHz
3dB Beamwidth H/V	Omni/24 degrees
Connector(s)	One N-Type Male
Dimensions	168mm Height
Weight	114g
Mounting	Direct attach
Operating Temp	-40°C to 65°C
IP Rating	IP-67

Antenna Patterns

AT-0536-HP

AT-0536-HP

5GHz horizontally polarized 5dBi omni-directional antenna

Application	Mesh/Client Access
Polarization	Horizontal
Antenna Gain	5dBi
Frequency Range	5.15 - 5.875GHz
3dB Beamwidth H/V	Omni/33 degrees
Connector(s)	One N-Type Male
Dimensions	200mm Height
Weight	180g
Mounting	Direct attach
Operating Temp	-30°C to 70°C
IP Rating	IP-67

Antenna Patterns

AT-0636-VH

AT-0636-VH

Bundle of one AT-0636-VP and one AT-0536-HP

Application	Mesh/Client Access
Polarization	Vertical & Horizontal
Antenna Gain	5.5dBi
Frequency Range	5.15 - 5.875GHz
3dB Beamwidth H/V	Omni/33 degrees
Connector(s)	Refer to individual antenna specs
Dimensions	Refer to individual antenna specs
Weight	Refer to individual antenna specs
Mounting	Direct attach
Operating Temp	-30°C to 65°C
IP Rating	IP-67

AT-0636-0536 Bundle

AT-0636-0536 Bundle

Bundle of two AT-0636-VP and one AT-0536-HP

Application	Mesh/Client Access
Polarization	Vertical & Horizontal
Antenna Gain	5.5dBi
Frequency Range	5.15 - 5.875GHz
3dB Beamwidth H/V	Omni/33 degrees
Connector(s)	Refer to individual antenna specs
Dimensions	Refer to individual antenna specs
Weight	Refer to individual antenna specs
Mounting	Direct attach
Operating Temp	-30°C to 65°C
IP Rating	IP-67

AT-0006-HP

AT-0006-HP

One 2.4Ghz omni-directional antenna, horizontally polarized, 6dBi

Application	Client Access
Polarization	Horizontal
Antenna Gain	6dBi
Frequency Range	2.4 - 5GHz
3dB Beamwidth H/V	Omni/25 degrees
Connector(s)	N-Male Connector (for 7782-E only)
Dimensions	329 mm Height
Weight	260g
Mounting	Direct attach
Operating Temp	-30°C to 70°C
IP Rating	IP-67

Antenna Patterns

AT-0005-VP

AT-0005-VP

One 2.4Ghz omni-directional antenna, vertically polarized, 5dBi

Application	Client Access
Polarization	Vertical
Antenna Gain	5.5dBi
Frequency Range	2.4 - 5Ghz
3dB Beamwidth H/V	Omni/32 degrees
Connector(s)	N-Male Connector (for 7782-E)
Dimensions	255mm Height
Weight	200g
Mounting	Direct attach
Operating Temp	-45°C to 70°C
IP Rating	IP-67

Antenna Patterns

AT-0303-VP

AT-0303-VP01

Indoor Antenna, elbow-joint, dual-band 2.4/5Ghz, 3dBi, vertical polarity, RP-SMA, pair (for 7372-E)

Application	Mesh/Client Access
Polarization	Vertical
Antenna Gain	3dBi
Frequency Range	2.4 - 5Ghz 4.9 - 5.875Ghz
3dB Beamwidth H/V	Omni
Connector(s)	RP - SMA Female
Dimensions	95.9mm Straight
Weight	10g per antenna
Mounting	Direct attach
Operating Temp	-20°C to 70°C
IP Rating	Indoor

Antenna Patterns

AT-0505-DP

AT-0505-DP01

Indoor Antenna, panel, dual-band 2.4/5Ghz, 5dBi, 2x2, dual-polarity RP-SMA (for 7372-E)

Application	Mesh/Client Access
Polarization	Vertical & Horizontal
Antenna Gain	5dBi
Frequency Range	2.4 - 5Ghz 4.9 - 5.875Ghz
3dB Beamwidth H/V	120/60 degrees
Connector(s)	RP - SMA Female
Dimensions	200×200×33
Weight	260g
Mounting	Wall
Operating Temp	-40°C to 70°C
IP Rating	Indoor

Antenna Patterns
